Aluminum

The Aluminum System's clean design features a 2 3/4" narrow stile and rail profile, allowing for more glass and light. The Aluminum system is perfect for residential and commercial projects in moderate climates.

Features

LaCantina Doors' Aluminum slider is offered as a complete sliding door system with the following:

Square detailing that is simple and modern
Clean and narrow 2 3/4" stile & rail profile doors
Extra wide door panels providing more glass and light
Single lite panels up to 12' tall without the need for a horizontal mullion
Self-draining Weather Resistant Sill with interior stop height options for all weather conditions
Flush and commercial sill options
Clear & bronze anodized, and white in-stock finishes or create a distinctive color

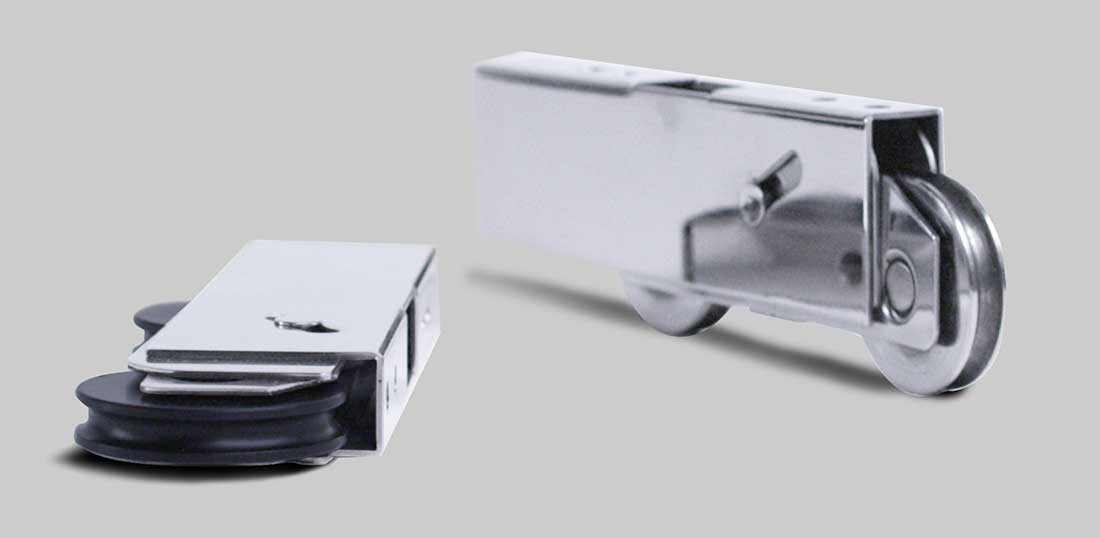

AAMA certified rolling hardware to handle extreme panel weights
Hardware finishes available in stainless or bronze

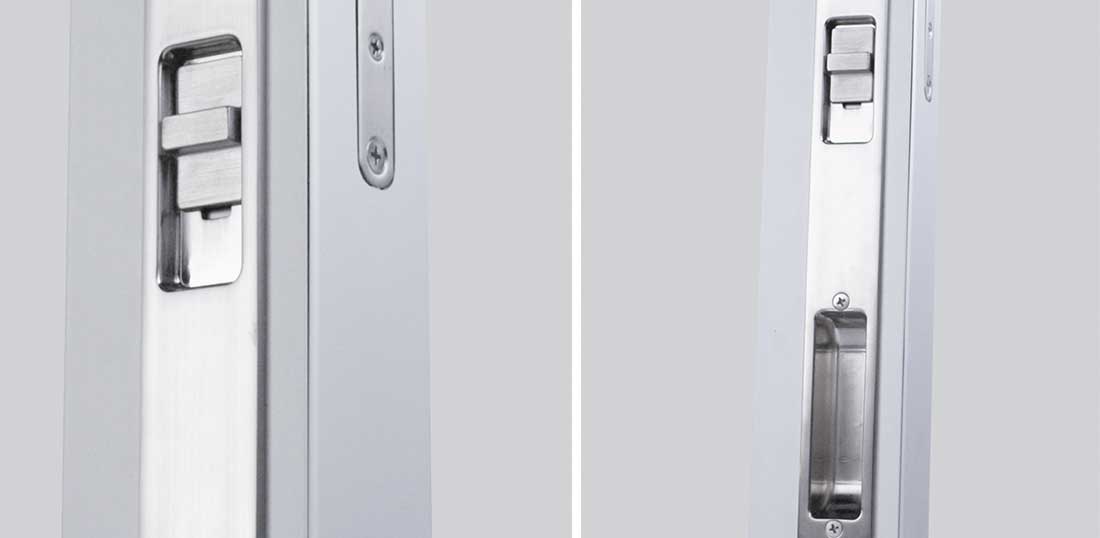

Standard two point lock system secures large sliding panels with locking hardware located on the primary sliding panel
Unique interlocking track design for added strength and structural integrity
Minimal one piece handle and lock with exterior key
System automation option
Wide range of glazing options for improved thermal performance
Matching screen options that integrate seamlessly with our sliding systems

Options Include

Custom color sourcing
Standard OX and XO configurations

Sizing & Configuration Options

The Aluminum system is available in a range of standard sizes to suit the most popular openings or can be “made to measure” to any configuration with panels up to 8’ wide and 12’ tall, panel width determines panel height based on 60 sq. ft. of glass.

OX or XO

Colors

LaCantina Doors offer a wide range of in-stock, optional and custom colors. These color options will allow you to complement or match virtually almost any color for your project needs.

Clear Anodized

A wide range of the most popular colors in the marketplace today.

Fast Track White

LaCantina Doors offers custom color matching to virtually any color. A 2-coat 70% Kynar is the standard finish. Multi-coat, metallic and premium powder coat finishes can be specified for your project needs.

These 6 popular decoral wood grain powder coat finishes are also available.

Light Douglas Fir

Hardware

LaCantina Doors Multi Slide System features the highest quality hardware and components for increased durability, ease of operation and smooth performance. This Multi Slide System hardware is available in a stainless, bronze or black finish.

Exterior Handle

Stainless Steel

Glass Information

Dual glazed tempered glass is standard on all LaCantina Door systems. And our glass comes with a protective film to prevent your windows from getting scratched or damaged by dirt and debris. Simply remove the film once the project is completed.

For better energy performance, we feature low-E glass. Most commercially available glazing can be used, including tinted, obscure, laminated and single glazed. Laminated glass with SGP interlayer can be added for security or impact protection. In addition to our expansive range of glass options we offer Cardinal's latest innovation, Neat Glass designed to stay cleaner longer and reduce water spots in our low-E 270, 272 and 366 options. Should your project require customized glass please contact us to verify availability.
